Product proposal

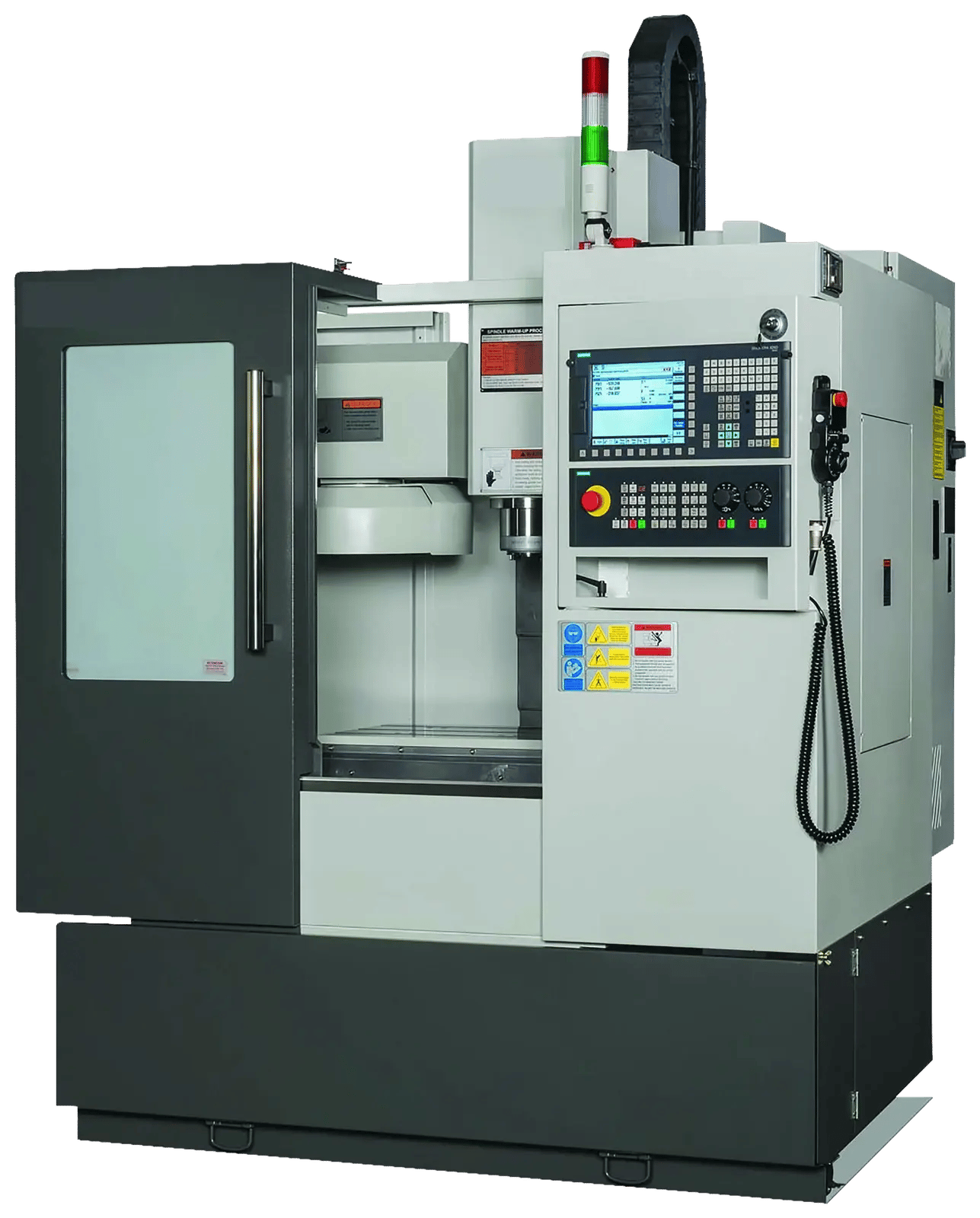

King RichKR-ME500
CNC vertical machining centre
Supplying Australian manufacturers since 1967
Prepared forCKS Engineering
Thank you for
the opportunity
to quote
Thank you for the opportunity to provide a proposal for a King Rich vertical machining centre. The King Rich KR-ME500 is a Taiwanese-built CNC vertical machining centre with a compact, rigid build that lets it cut difficult materials such as stainless steel and super duplex reliably. It runs an industry-standard BT40 spindle at 8,000 rpm, linear rail ball bearing slides, a 12 tool carousel changer and a Fanuc 0i-MF Plus control with Fanuc servo motors. It is supplied and supported locally by QMT Machinery.
- For
- Tom HedgesCKS Engineering
- Dated
- 26.10.2026
- Valid until
- 26.11.2026
- Your contact
- Darren McDonald0408 569 412
Feature highlights

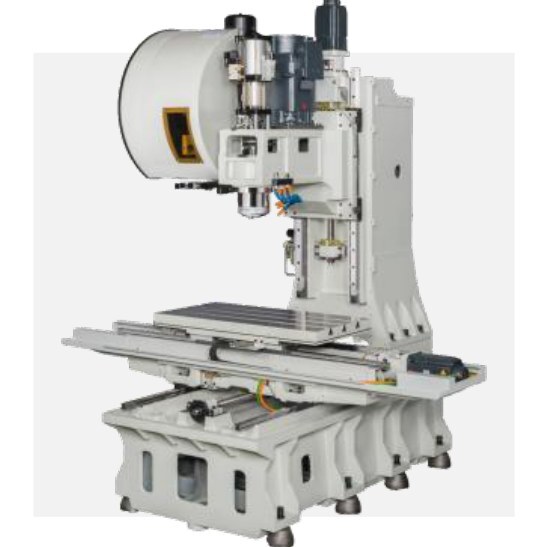

Compact and Rigid Build
High rigidity design allows the machine to cut difficult materials such as stainless steel and super duplex reliably.

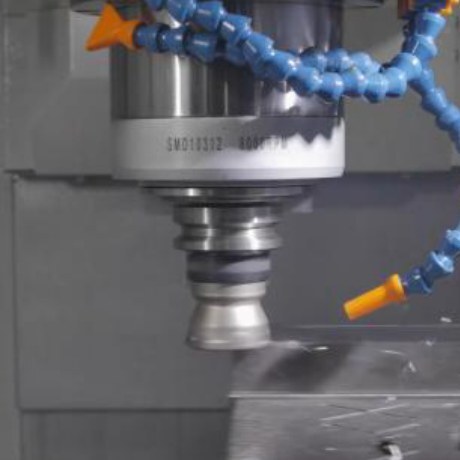

BT40 Spindle
Industry-standard BT40 taper for wide tooling compatibility. 8,000 rpm as standard (10,000 rpm on the ME1600). Faster spindles are optional on the ME500 to ME1000.

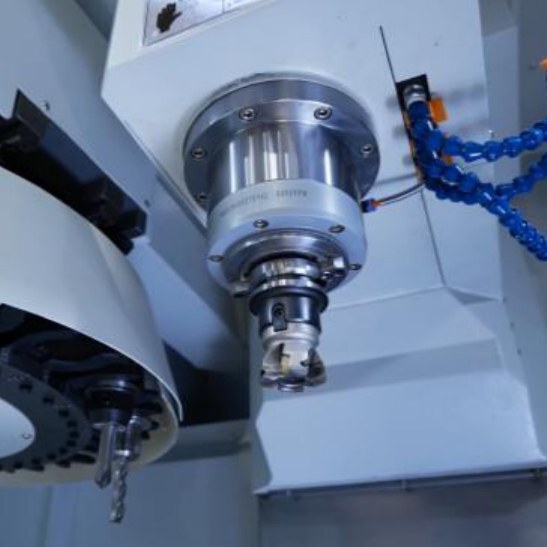

Auto Tool Change
The carousel holds 12 tools (ME500) or 20 (ME750, ME1000). The ME1600 has a 24 tool arm changer at 2.5 seconds tool to tool. Arm type is optional on the ME750 and ME1000.

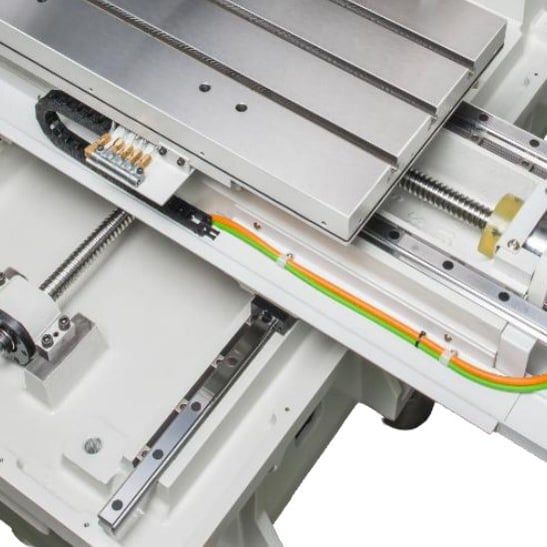

Linear Rail Technology
Advanced linear rail ball bearing slides make full use of high speed tool paths and modern cutting tool technology.
Trusted by
Specifications
| Capacity | |
|---|---|
| X axis travel | 510mm |
| Y axis travel | 400mm |
| Z axis travel | 450mm |
| Spindle nose to table | 100-550mm |
| Spindle centre to column | 415mm |
| Table | |
|---|---|
| Table size | 580 x 400mm |
| Max. table load | 250kg |
| T-slots (number x width x pitch) | 3 x 16 x 125mm |
| Spindle | |
|---|---|
| Spindle taper | BT40 |
| Spindle speed | 8,000rpm(Opt 10,000rpm & 12,000rpm) |
| Spindle motor power | 10HP |
| Spindle bearing diameter | 60mm |
| Feed | |
|---|---|
| Rapid traverse (X, Y, Z) | 20,000mm/min |
| Cutting feed rate | 1-20,000mm/min |
| Guideways | Linear rail |
| Tool changer | |
|---|---|
| Tool magazine type | Carousel |
| Tool magazine capacity | 12 tools |
| Max. tool diameter | 100mm |
| Max. tool weight | 6kg |
| Tool change time (tool to tool) | 8 sec |
| Control | |
|---|---|
| Controller | Fanuc 0i-MF Plus (3) |
| Monitor | 10.4in colour LCD/MDI |
| Chip and coolant | |
|---|---|
| Chip conveyor | None(Opt Chip conveyor) |
| Through spindle | Air blast(Opt Through spindle coolant) |
| Coolant tank capacity | 105L |
| General | |
|---|---|
| Door opening width | 620mm |
| Net weight | 1,900kg |
| Gross weight | 2,400kg |
| Floor space (L x W x H) | 1,660 x 1,910 x 2,700mm |

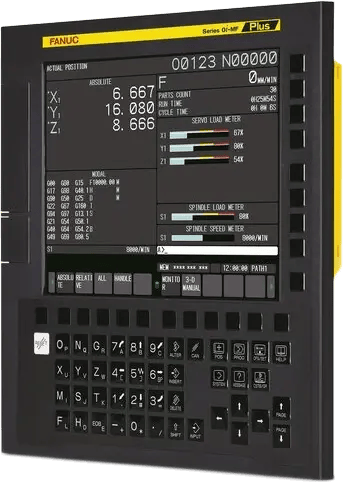

CNC controller / Series 0i-F Plus / Type 3
Fanuc0i-MFPlus
- 10.4"Display
- 4Max axes simultaneous
Standard
- Rigid tapping
- Nano interpolation
- AI contour control (AICC)
- Custom macro (Macro B)
- Canned cycles for drilling
- Tool life management
- Tool length measurement
- Embedded Ethernet
- Memory card and USB memory input/output
Inclusions
Fanuc 0i-MF Plus (3) control- 10.4" colour LCD/MDI
Fanuc servo motors
Spindle taper: BT40
Linear rail
Auto lubrication system
Coolant system
Steel slideway covers on all axes
Fully enclosed guarding
Air blast through spindle
Electronic handwheel
Leveling bolts and blocks
Working light
Tool box
Fanuc 10HP spindle motor- Max. spindle speed 8,000rpm
Carousel type 12 tools ATC
Pricing
| Product | Price (ex GST) |
|---|---|
| King Rich KR-ME500 | $91,540 |
| Delivery to Stawell, VIC | Included |
- Model number
- KR-ME500
- Weekly rent
- $1,053+ GST & Damage Waiver
- Minimum term (weeks)
- 26 WeeksMinimum term can be adjusted to reduce weekly rent if required.
Why Rent-2-Own?
- 100% expensable, off your balance sheet
Claim the full weekly rental as an immediate tax deduction.*
- Preserve your capital
A predictable weekly operating cost, not a big Capex hit, so your cash stays free to grow the business.
- Take on new work without the upfront outlay
Add or upgrade to brand new gear that lifts output & expands your capabilities now, all for a fixed weekly rate.
- Not finance. No long lock-in
Short minimum term, then keep renting, pay it out, or hand it back.
- Try before you commit, risk-free
Not sure the machine, brand or solution is right? Prove it on your own floor first. If it doesn’t work out, hand it back. No wasted capital, no asset you’re stuck with.
- You’re not just renting. You’re paying it off.
Half your weekly rent turns into equity and reduces what you pay to own it outright.
Your options at end of term
Purchase
Buy the machine outright for $77,851
Rent
Continue renting & building equity, buy-out anytime.
Return
Return the machine back to us.
*Information provided is general only and not tax, financial or accounting advice. Please consult your accountant regarding your circumstances.
Terms & conditions
Terms of payment
30% deposit on placement of official order and balance before delivery.
Lead time
Approximately 22 to 26 weeks from receipt of official order and deposit.
Delivery
Customer is responsible for unloading and locating machine into required installation area.
Commissioning (extra cost option)
Prior to arrival of our technician, the machine must be in its intended location on a stable foundation. All services, such as electrical outlets and air connections must be operable and in correct locations.
Quotation validity
As per quotation validity date.
Specifications
The manufacturer reserves the right to improve/alter the design and specifications.
Warranty
In accordance with the manufacturer’s warranty, we agree to replace or repair all parts that prove to be defective in materials or workmanship within twelve (12) months of purchase, provided that the machine has been operated within the manufacturer’s recommendations.
We trust this quotation meets with your approval. Should you require additional information, please do not hesitate to contact us.
